Introduction

I had to do some SDN stuff with Arista switches at work, but I didn't have an actual machine, so I was looking for a quick way to try it out.

Many things in the world have become containerized and convenient, and Arista's switch also seems to have a containerized version called cEOS.

Let's launch the container version of EOS

Get a container image from the Arista official site

You will be able to download a image by signing up at the Arista official site. Click the Login at the top of the page.

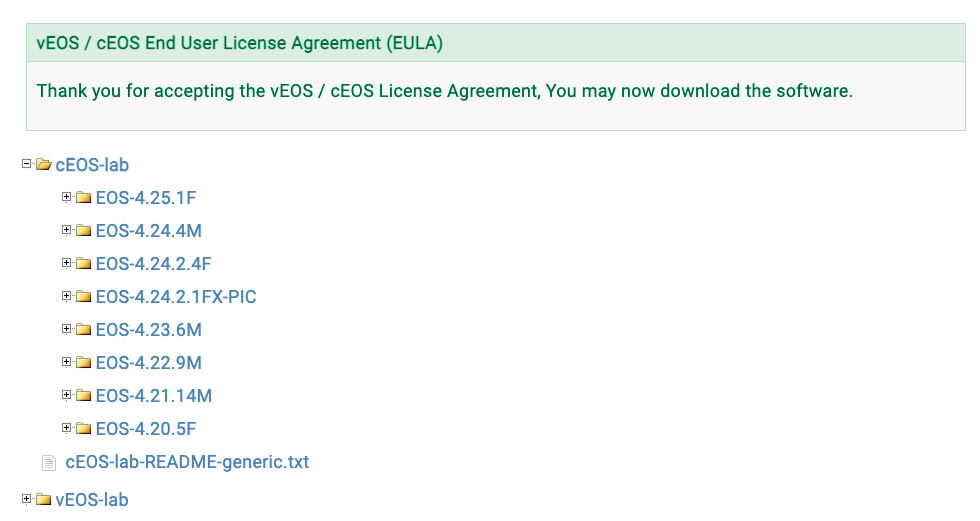

Looks that 4.25.1F is the latest, let' use it.

Import the image to docker

$ docker import cEOS-lab-4.25.1F.tar ceos:4.25.1F
sha256:cfc9238775466cd246a24a213852cb235d2c36256c81e9969f89d431a49b4649

$ docker images
REPOSITORY                     TAG                 IMAGE ID            CREATED             SIZE
ceos                           4.25.1F             cfc923877546        6 minutes ago       1.69GB

Create a container and run

docker create \
  --name=ceos6 \
  -p 8080:80 \
  --privileged \
  -e INTFTYPE=eth \
  -e ETBA=1 \
  -e SKIP_ZEROTOUCH_BARRIER_IN_SYSDBINIT=1 \
  -e CEOS=1 -e EOS_PLATFORM=ceoslab \
  -e container=docker \
  -i -t ceos:4.25.1F /sbin/init \
  systemd.setenv=INTFTYPE=eth \
  systemd.setenv=ETBA=1 \
  systemd.setenv=SKIP_ZEROTOUCH_BARRIER_IN_SYSDBINIT=1 \
  systemd.setenv=CEOS=1 \
  systemd.setenv=EOS_PLATFORM=ceoslab \
  systemd.setenv=container=docker

I will call the eAPI using port 8080 from my host.

$ docker start ceos6

$ docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS                  NAMES
3a61f13b3761        ceos:4.25.1F        "/sbin/init systemd.…"   18 seconds ago      Up 1 second         0.0.0.0:8080->80/tcp   ceos6

Port mapping is available.

$ docker port ceos6 80
0.0.0.0:8080

How to get to the EOS CLI

Just give Cli at the end of the docker command, then.... Hello EOS world!

$ docker exec -i -t ceos6 Cli
localhost>en
localhost#conf t
localhost(config)#show run
! Command: show running-config
! device: localhost (cEOSLab, EOS-4.25.1F-20001546.4251F (engineering build))
!
transceiver qsfp default-mode 4x10G
!
service routing protocols model ribd
!
agent Bfd shutdown
agent PowerManager shutdown
agent LedPolicy shutdown
agent Thermostat shutdown
agent PowerFuse shutdown
agent StandbyCpld shutdown
agent LicenseManager shutdown
!
spanning-tree mode mstp
!
no aaa root
!
no ip routing
!
management api http-commands
   protocol http
   no shutdown
!
end

Set up the API

Let's enable the API access at the management port. The default setting is as follows.

localhost#show management api http-commands
Enabled:            No
HTTPS server:       enabled, set to use port 443
HTTP server:        shutdown, set to use port 80
Local HTTP server:  shutdown, no authentication, set to use port 8080
Unix Socket server: shutdown, no authentication
VRFs:               None
Hits:               0
Last hit:           never
Bytes in:           0
Bytes out:          0
Requests:           0
Commands:           0
Duration:           0.000 seconds
SSL Profile:        none
FIPS Mode:          No
QoS DSCP:           0
Log Level:          none
CSP Frame Ancestor: None
TLS Protocols:      1.0 1.1 1.2

Add some configurations...

localhost#conf t
localhost(config)#management api http-commands
localhost(config-mgmt-api-http-cmds)#no protocol http
localhost(config-mgmt-api-http-cmds)#protocol http
localhost(config-mgmt-api-http-cmds)#no shutdown
localhost(config-mgmt-api-http-cmds)#wr mem
Copy completed successfully.

Now the API looks working.

localhost(config)#show management api http-commands
Enabled:            Yes
HTTPS server:       running, set to use port 443
HTTP server:        running, set to use port 80
Local HTTP server:  shutdown, no authentication, set to use port 8080
Unix Socket server: shutdown, no authentication
VRFs:               default
Hits:               0
Last hit:           never
Bytes in:           0
Bytes out:          0
Requests:           0
Commands:           0
Duration:           0.000 seconds
SSL Profile:        none
FIPS Mode:          No
QoS DSCP:           0
Log Level:          none
CSP Frame Ancestor: None
TLS Protocols:      1.0 1.1 1.2

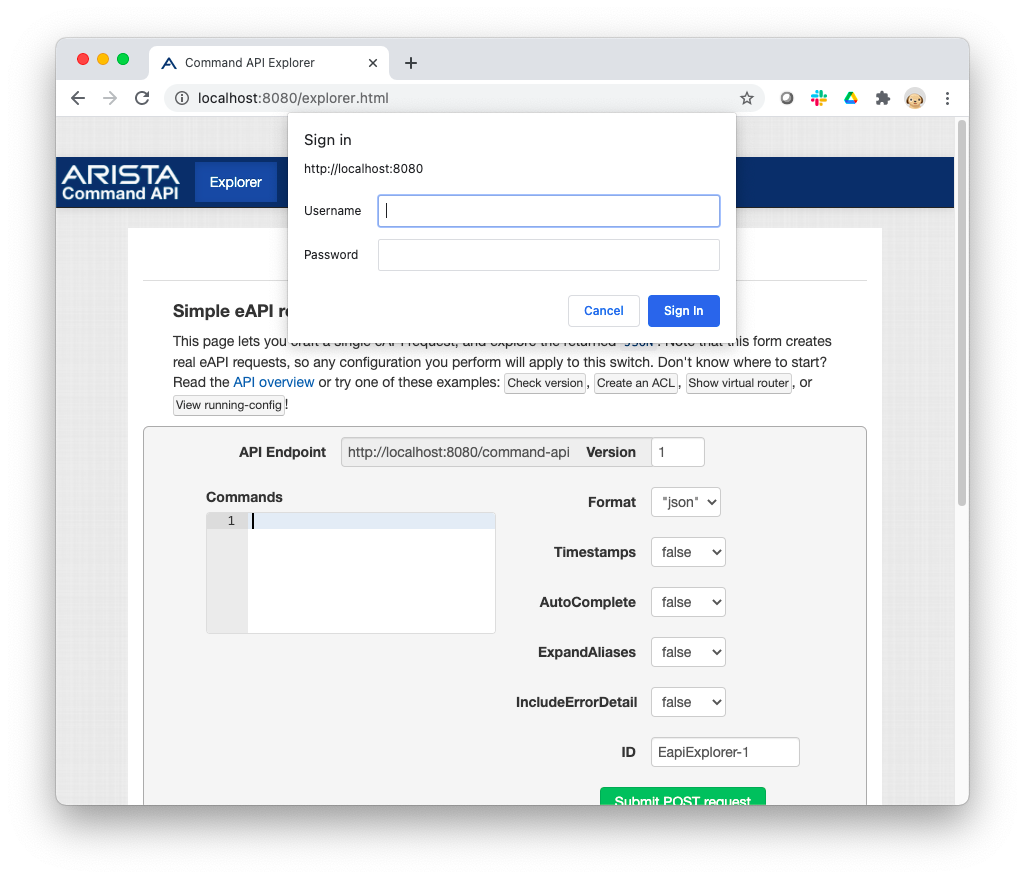

Access to the port with a web browser

...oh, you need an login account

Create a user account

localhost#conf t
localhost(config)#username <username> secret 0 <password>

You can check the user configuration by show run

GUI

You can do many things with the web UI.

There are two tabs. In the Simple Request, it will convert EOS CLI command into JSON request. Script Editor is to write JavaScript with the SDK.

You can find other language SDK such as go, python, ruby... in Arista's GitHub

Enjoy SDN! ;)
